Agitator Seals

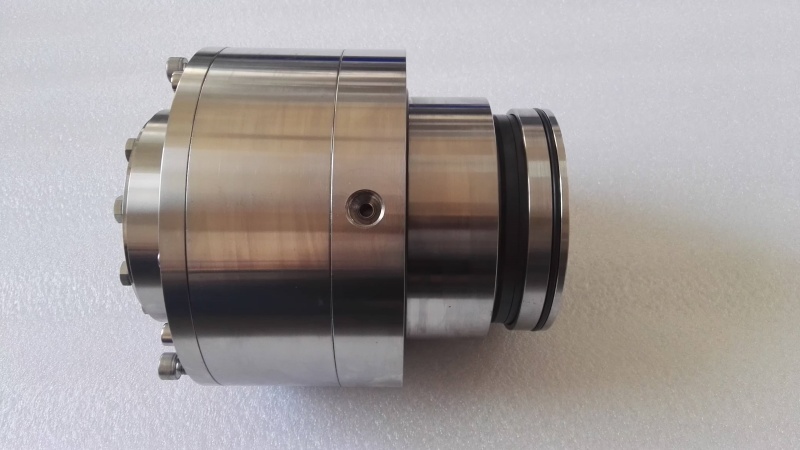

Mechanical seal for side mixing
Features
For top, side and bottom entry drives
Rotating seat at product side
Balanced
Independent of direction of rotation
Advantages
Ready-to-fit and factory-tested units
With or without bearing available
Smooth surface, free of dead spaces
No contamination of the product by barrier fluid
Friction-locked connection to the shaft
Products
Contact Now
Description
Reviews
Operating range
Shaft diameter:
d1 = 35 ... 220 (300) mm (1.38" ... 8.66"(11.81"))
Axial offset shaft/housing: d1 = 35 … 60 mm
(1.38" … 2.36"): max. ±1.5 mm (0.059")
d1 >60 mm (2.36"): max. ±2.0 mm (0.079")
Radial offset shaft/housing:
max. ±0.3 mm (0.012")
Pressure: p1 = Vacuum ... 6 bar (87 PSI)
Temperature:
t1 = -20 °C ... +200 °C (-4 °F ... +392 °F)
Sliding velocity: vg = 0 ... 2 m/s (0 ... 6 ft/s)
For applications beyond this range, please inquire.
It should be noted that the extremal values of each operating parameter cannot be applied at the same time because of their interaction.
d1 = 35 ... 220 (300) mm (1.38" ... 8.66"(11.81"))
Axial offset shaft/housing: d1 = 35 … 60 mm
(1.38" … 2.36"): max. ±1.5 mm (0.059")
d1 >60 mm (2.36"): max. ±2.0 mm (0.079")
Radial offset shaft/housing:
max. ±0.3 mm (0.012")
Pressure: p1 = Vacuum ... 6 bar (87 PSI)
Temperature:
t1 = -20 °C ... +200 °C (-4 °F ... +392 °F)
Sliding velocity: vg = 0 ... 2 m/s (0 ... 6 ft/s)
For applications beyond this range, please inquire.
It should be noted that the extremal values of each operating parameter cannot be applied at the same time because of their interaction.
