Side Entry Agitator
Side Entry Blender Belt Drive Mixer
High-performance mixing solutions designed for large industrial applications
High performance, high quality, high efficiency
Product Type(s): Side Entry Mixers
Impeller Diameter (mm): Customized
Nominal Volume(m³): Customized
Rotating Speed of Impeller (r /min): Customized
Products
Contact Now
Description
Reviews
The Side Entry Belt Drive Agitator is a high-performance mixing solution designed for large-scale industrial applications. Its side-entry configuration ensures efficient fluid mixing in large storage tanks, making it ideal for industries such as petrochemicals, pharmaceuticals, and food processing.
Basic Info.
Additional Capabilities
Mixing, Suspension, Dispersion, Dissolution, React
Application
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid
Application Area
Chemical, Food
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Propeller Paddle
Stirring Type
Forced
Working
Shear Mixer
Mixer Type
Agitator
Layout Type
Horizontal
Operating type
Continuous Operating
Trademark
Sealok
Transport Package
Export Used Wooden Box
Specification
Motor,gear reducer,mechanical seal,impeller assemb
Origin
China
HS Code
8479820090
Products Parameters

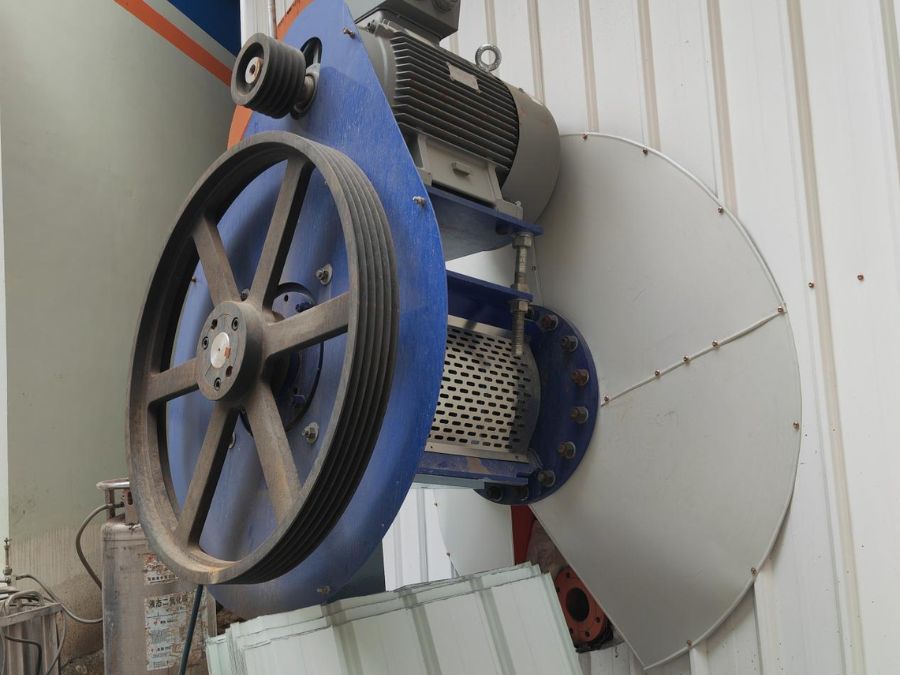

The Side Entry Belt Drive Agitator is composed of a pulley, bracket, main shaft, base, sealing ring, packing chamber, shaft sleeve, gland, impeller, shaft cap, belt cover, bearing seat, bearing, V-belt, motor, etc.
The impeller is assembled at one end of the main shaft. The main shaft and rolling bearing are installed on the bearing seat, and then the pulley is assembled on the other end of the shaft. When the impeller rotates, the slurry is pushed to circulate in the slurry tank to achieve the purpose of uniform mixing.
| Name | FTJ/500 | FTJ/700 | FTJ/750 | FTJ/1000 | FTJ/1250 | FTJ/1500 |
| Solvent slurry pool (M3) | 15~30 | 40~60 | 60~80 | 80~100 | 100~120 | 120~150 |
|
slurry density (%) |
||||||
| Impeller Diameter(mm) | 500 | 700 | 750 | 1000 | 1250 | 1500 |
|
Impeller speed (r/m) |
300 | 240 | 220 | 180 | 180 | 180 |
| Motor type | Y160M-6 | Y160L-6 | Y180L-6 | Y200L2-6 | Y225M-6 | Y280S-6 |
|
Motor power (KW) |
7.5 | 11 | 15 | 22 | 30 | 45 |
| V-belt | B3150/6 | B3150/6 | B3150/6 | B4500/6 | B4500/6 | C6300/8 |
Order Process
➢ 1. Please tell us your product requirements, including material, size, impeller model, etc.
➢ 2. Based on your requirements, we will propose a solution and provide a quotation.
➢ 3. After the price is confirmed, we can provide you with samples first, and the cost and freight of the
samples will be borne by you.
➢ 4. Contracts or proforma invoices should be signed to confirm the price and quantity if the samples fit the requirements.
➢ 5. The customer pays according to the contract.
➢ 6. After receiving advance payment, start producing and delivering on time.
➢ 7. The goods shipped after quality control and packaging.
➢ 8. Please confirm receipt and inspect the goods.
➢ 9. Please tell us if there is any question or problem since receiving goods.
